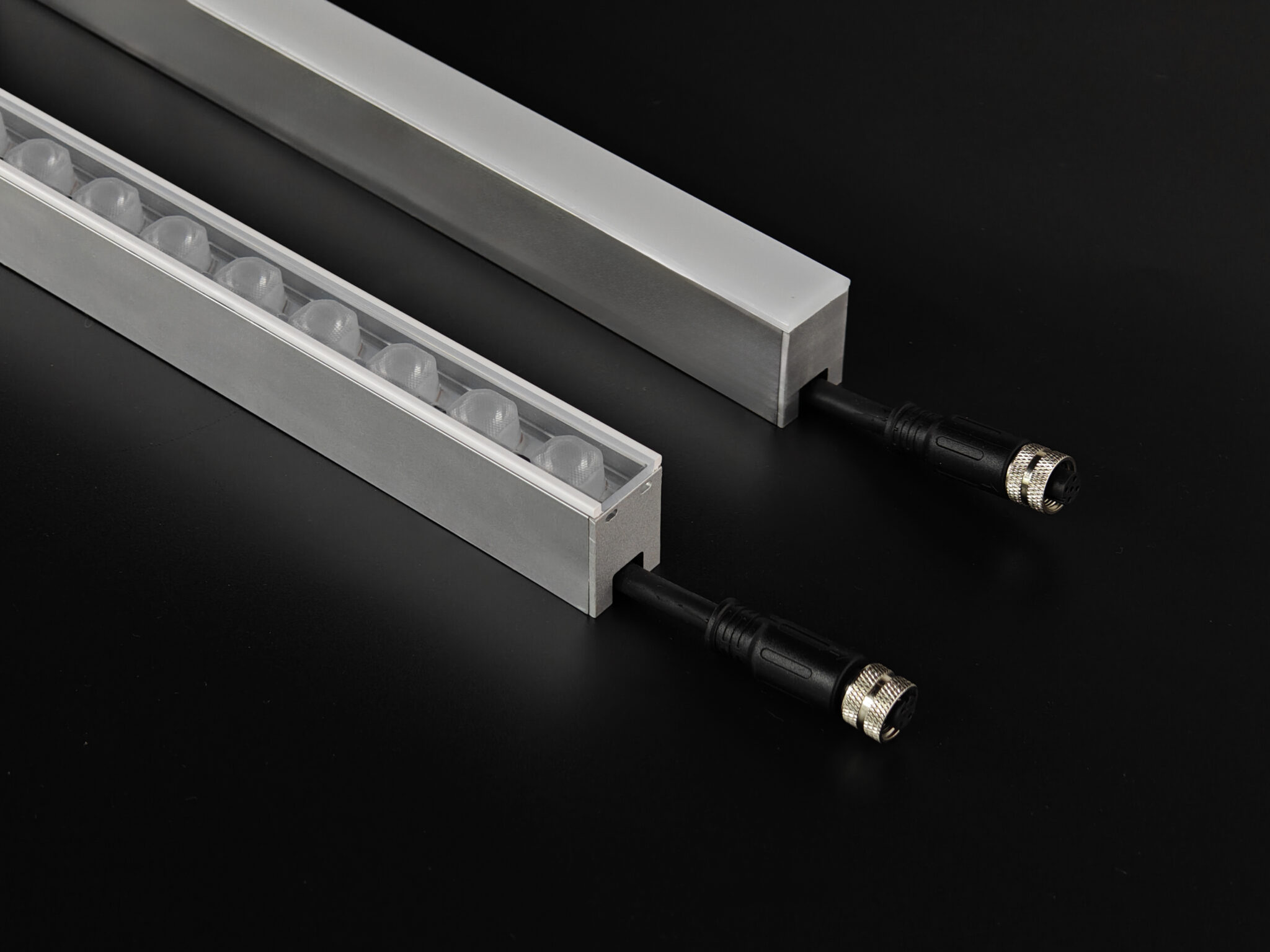

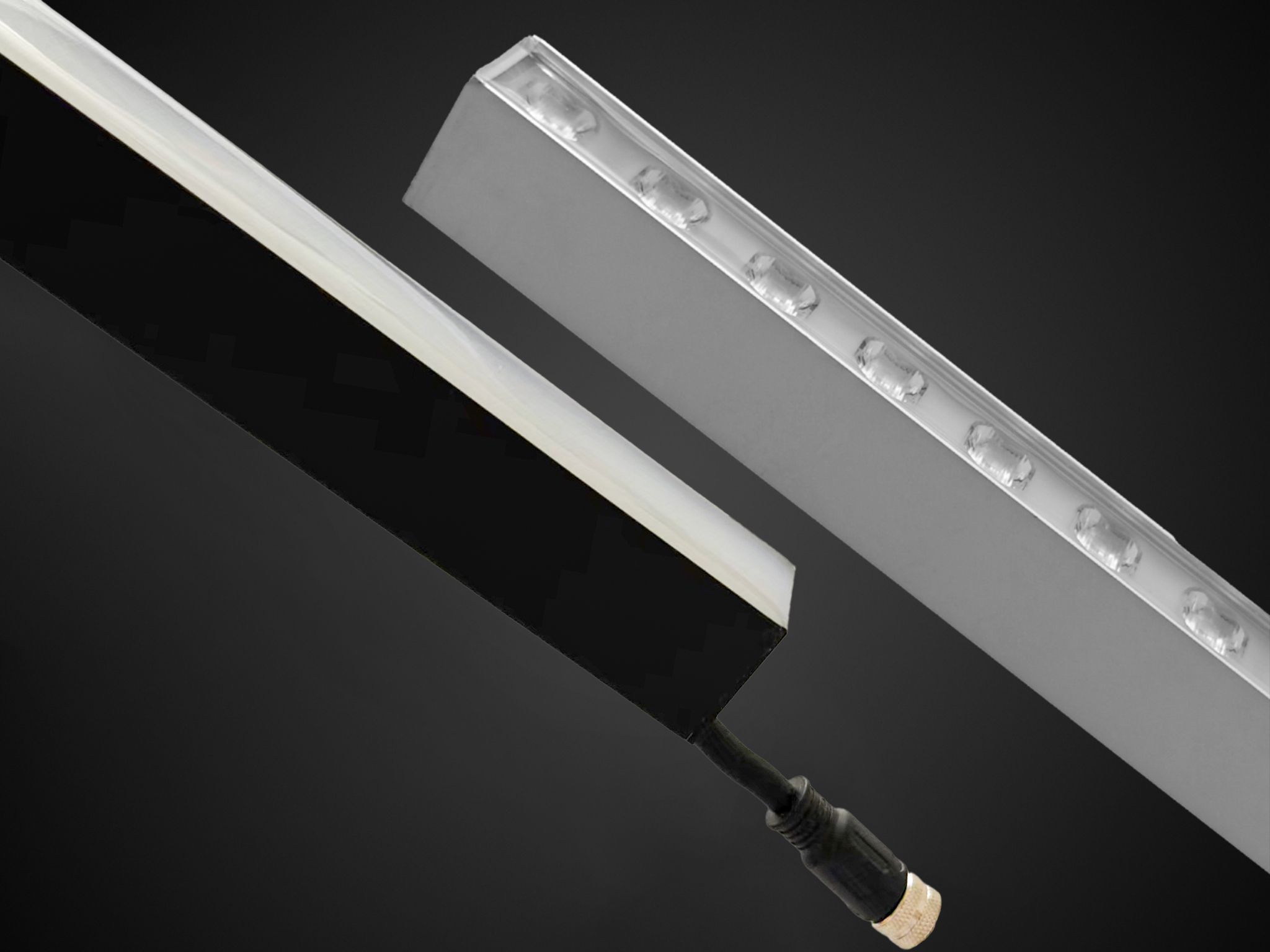

Grazer – 23 x 32 mm, 9W, 4000K@810Lm/m, RGBW@360Lm/m, min length 304mm
Beam angle: Mono 20°, 30°, 40°, 110°, 20*35°；RGB/RGBW-DMX 35°, 110°
| Series code: | VL-FLWW-C-2332 | |||
| Connection type: | Daisy chain | |||
| Voltage Input: | 24V DC | |||
| Power: | L304= 8W; L609=16W; L070mm=26W; L1220=32W | |||
| Beam Angle: | 20°, 30°, 40°, 20*35° | 35° | 110° | 110° |
| CCT: | 2700K / 3000K 3500K / 4000K |
RGBW or RGBW-DMX |
2700K / 3000K
3500K / 4000K |
RGBW or RGBW-DMX |
| Efficacy: | 90Lm/W | 45Lm/W | 70Lm/W | 30Lm/W |
| IP/IK protection: | IP68 / IK10 | |||
| Finished color: | Black or Silver | |||
| Dimension: | Length: 304mm, 609mm, 1070mm, or 1220mm optional
Width: 23 mm Height: 32 mm |
|||
| Max. Run | 5 m (16.4 ft) | |||
| Environment: | Suitable for dry or damp locations or wet location | |||
| Mounting: | Surface or In-ground | |||
| Approvals: | UL, CE, ROHS, REACH | |||
| Warranty: | 5 years, limited | |||
· IP68 protection for underwater applications
· Built-in wireway design simplify installations
· Higher power options for demanding projects
· High efficacy up to 90lm/w
· Multiple beam angles, lengths and power options for diverse requirements

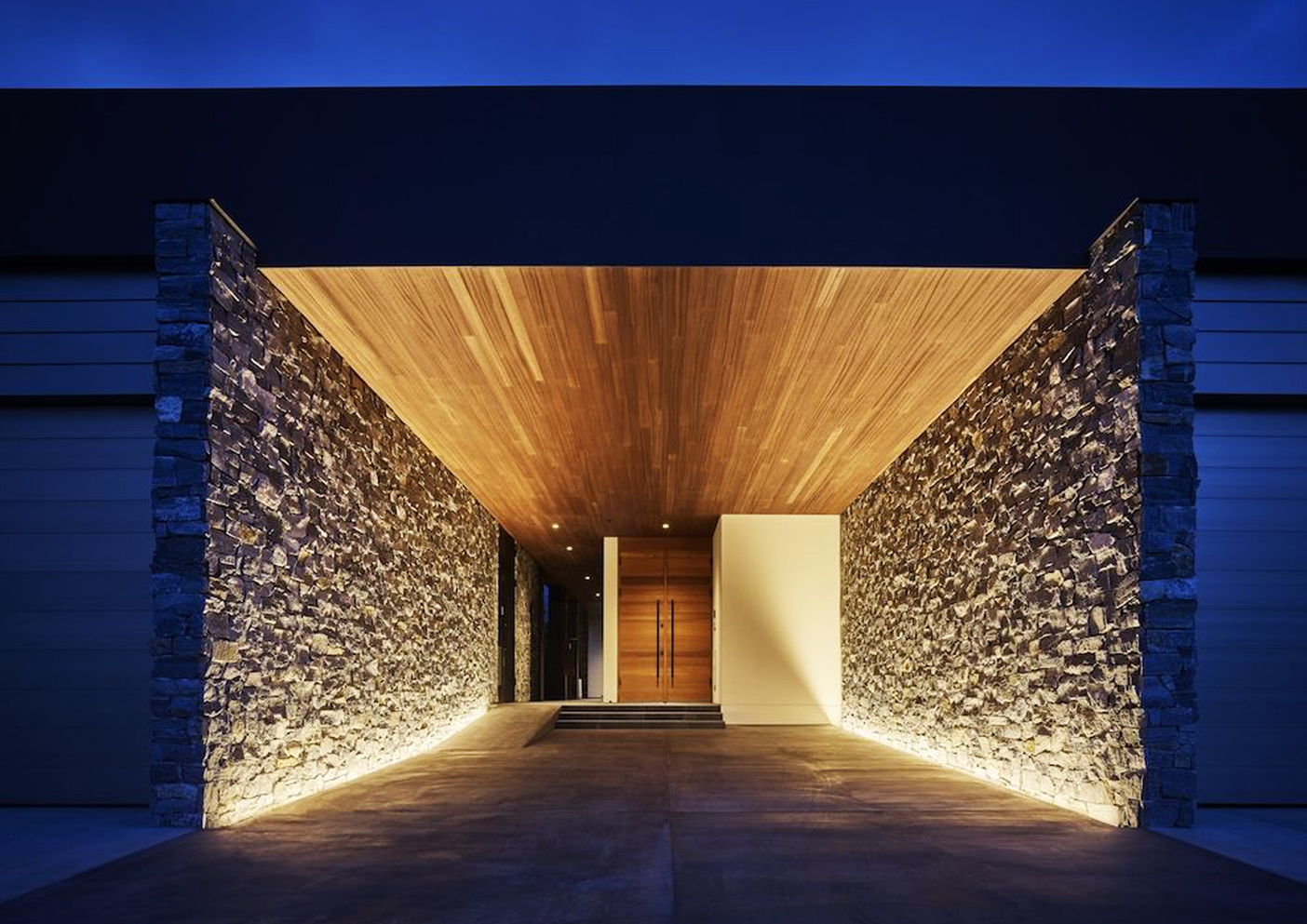

· Building wall washing in water-prone areas
· Fountain and water feature surrounding walls
· Swimming pool perimeter wall illumination
· Bridge wall illumination in marine environments
