Free-cut Tunable Flexible and Cuttable LED Sheet is a fully modular, flexible, water-resistant, and cuttable for backlighting applications such as displays, translucent materials, showcases, countertop and more.
| Series code: | VFL-TWBL2835-2765K-400-4824-24V | ||
| LEDs per sheet: | 400LED/Sheet (122Led/ft) | ||
| Input Voltage: | 24V DC | ||
| Max. Power/m: | 90 W (27.4 W/ft) | ||
| Lumens : | 2700K | 4000K | 6500K |
| 3,795 lm
(1,157 lm/ft) |
8,040 lm
(2,451 lm/ft) |
4,020 lm
(1,225 lm/ft) |
|
| Efficacy: | 90 Im/W @4000K, CRI90+ | ||
| CRI: | >90 (custom on request) | ||
| CCT: | 2700K~6500K (custom on request) | ||
| Beam angle: | 120° | ||
| Control Protocol: | / | ||
| Qty Pixels/sheet | / | ||
| Drivers/Dimming: | 0-10V; DALI, PWM, On/Off | ||
| IP/IK protection: | IP20, IP54 (Option) | ||

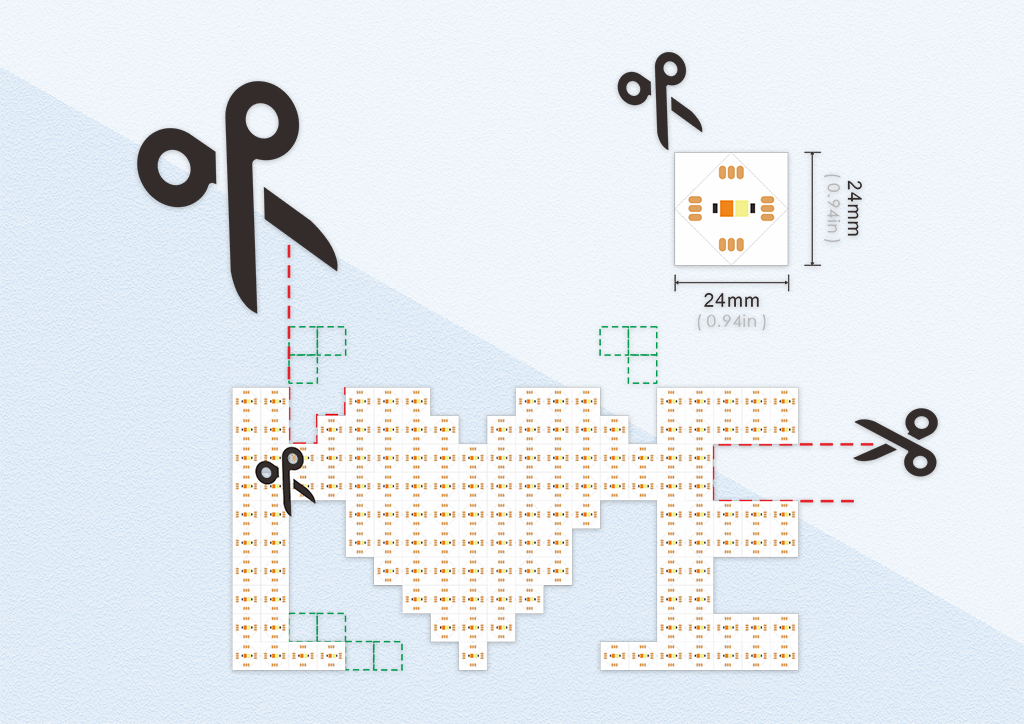

| Cutting Size: | 24 x 24 mm (0.94*0.94 in) | ||
| Dimension: | L480*W240*H1.6mm (L18.9*W9.5*H0.06in) | ||
| Environment: | Suitable for dry or damp locations | ||
| Mounting: | 3M Adhesive Backing and Screws | ||
| Approvals: | UL, CE, ROHS, REACH | ||
| Warranty: | 5 years, limited | ||
· Backlight sheet flexible and bendable
· Full-spectrum , CRI＞97
· Cuttable every 24*24 mm to create any sculpt
· Free-solder power feeding
· Waterproof type available IP54 for damp application

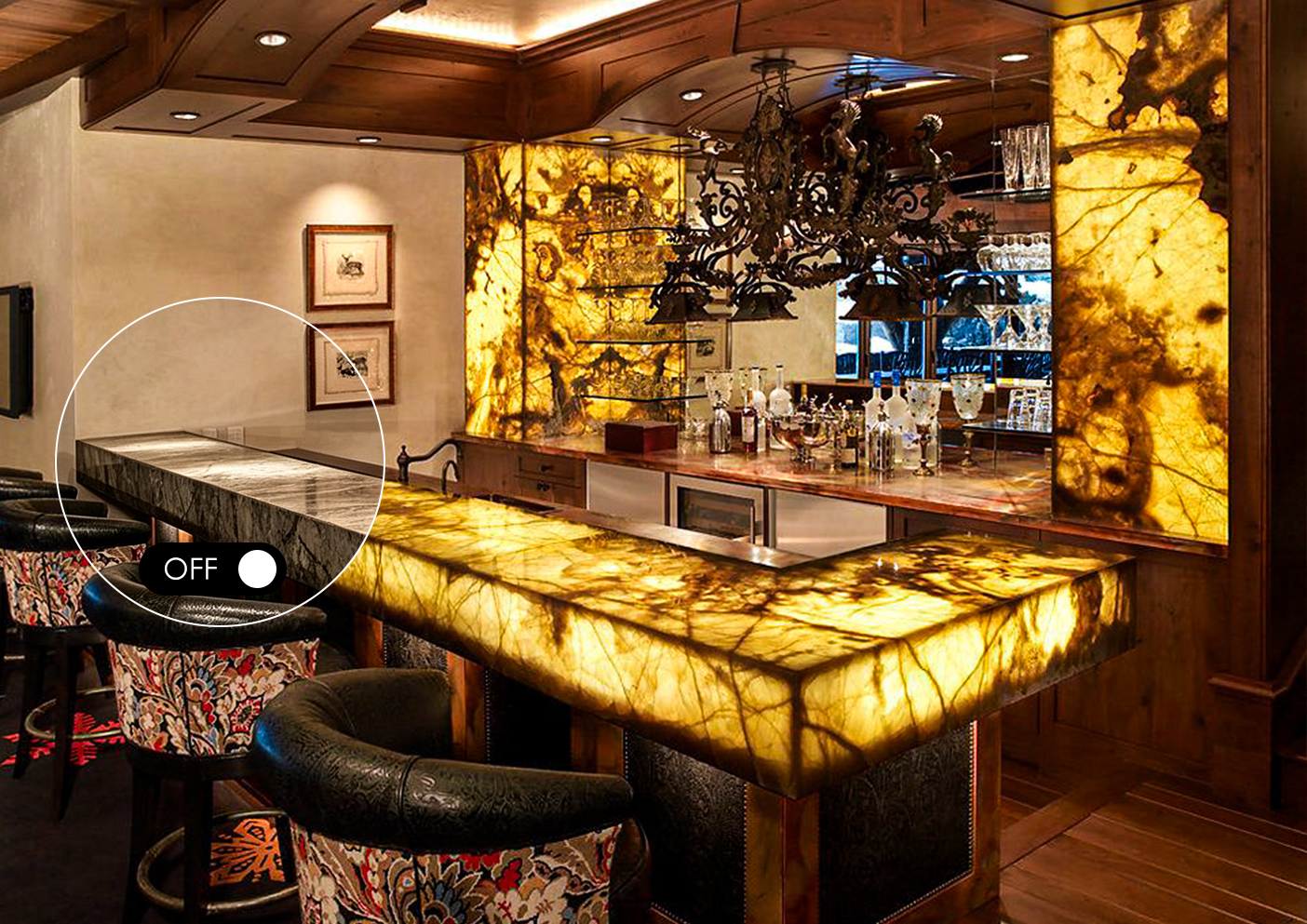

· Museum exhibition back-lighting
· Art gallery walls
· High-end retail dynamic displays
