Addressable Flexible and Cuttable LED Sheet is a fully modular, flexible, water-resistant, and cuttable for backlighting applications such as displays, translucent materials, showcases, countertop and more.
| Series code: | VFL-MCBL5050-PXSRGBW-216-4824-24V |
| LEDs per sheet: | 216LED/Sheet (65Led/ft) |
| Input Voltage: | 24V DC |
| Powe/mr: | 32 W (9.75 W/ft) |
| Lumens: | 850 Im/sheet (259 Im/ft) @RGBW |
| Efficacy: | 26 Im/W @RGBW |
| CRI: | >90 |
| CCT: | RGBW |
| Beam angle: | 120° |
| Control Protocol: | RGBW |
| Qty Pixels/sheet: | 18 pixels |
| Drivers/Dimming: | 0-10V; DALI, PWM, On/Off, SPI |
| IP/IK protection: | IP20, IP54(Option) |

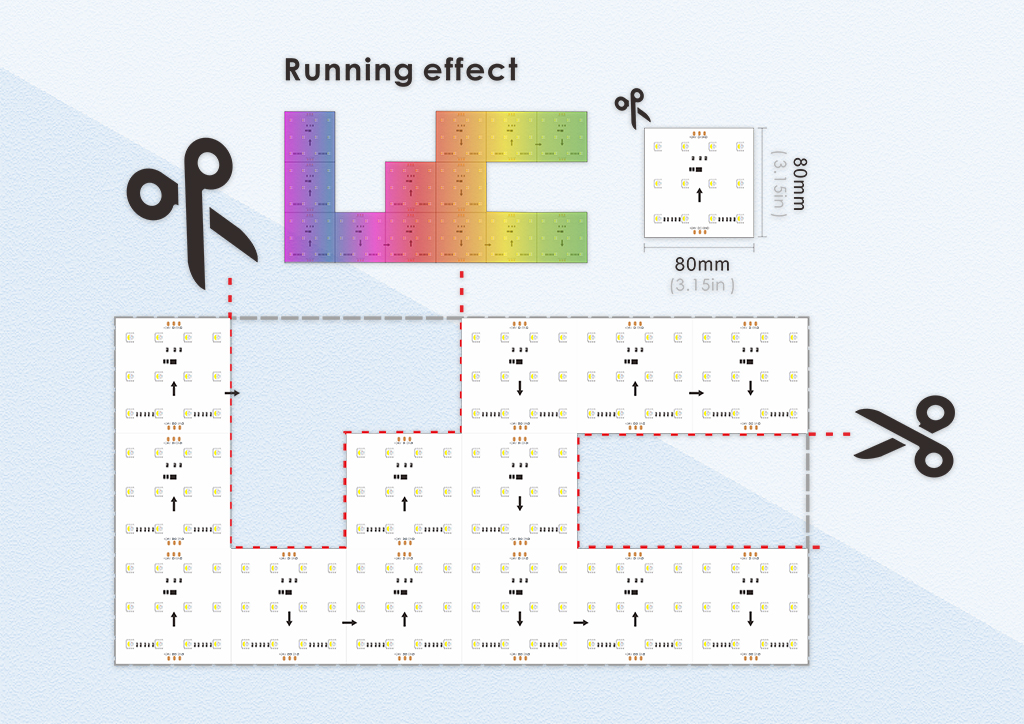

| Cutting Size: | 80 x 80 mm (3.15*3.15 in) |
| Dimension: | L480*W240*H2mm (L18.9*W9.5*H0.07in) |
| Environment: | Suitable for dry or damp locations |
| Mounting: | 3M Adhesive Backing and Screws |
| Approvals: | UL, CE, ROHS, REACH |
| Warranty: | 5 years, limited |
· Backlight sheet flexible and bendable
· Addressable control mode SPI
· Custom size
· Free-solder power feeding
· Waterproof type available IP54 for damp application
· Media facade pixel mapping displays
· Concert stage backdrop animations
· Museum interactive exhibits
