Free-cut static white Flexible and Cuttable LED Sheet is a fully modular, flexible, water-resistant, and cuttable for backlighting applications such as displays, translucent materials, showcases, countertop and more.
| Series code: | VFL-FCBL2835-MONO-288-4824-24V | ||
| LEDs per sheet: | 288LED/Sheet (87Led/ft) | ||
| Input Voltage: | 24V DC | ||
| Max. Power/m: | 45 W (13.7 W/ft) | ||
| Lumens : | 2700K | 3000K | 4000K |
| 3,880 lm
(1,182 lm/ft) |
4,085 lm
(1,245 lm/ft) |
4,300 lm
(1,310 lm/ft) |
|
| Efficacy: | 90 Im/W @3000K, CRI90+ | ||
| CRI: | >90 (custom on request) | ||
| CCT: | 2700K / 3000K / 3500K / 4000K (custom on request) | ||
| Beam angle: | 120° | ||
| Control Protocol: | / | ||
| Qty Pixels/sheet | / | ||
| Drivers/Dimming: | 0-10V; DALI, PWM, On/Off | ||
| IP/IK protection: | IP20, IP54 (Option) | ||

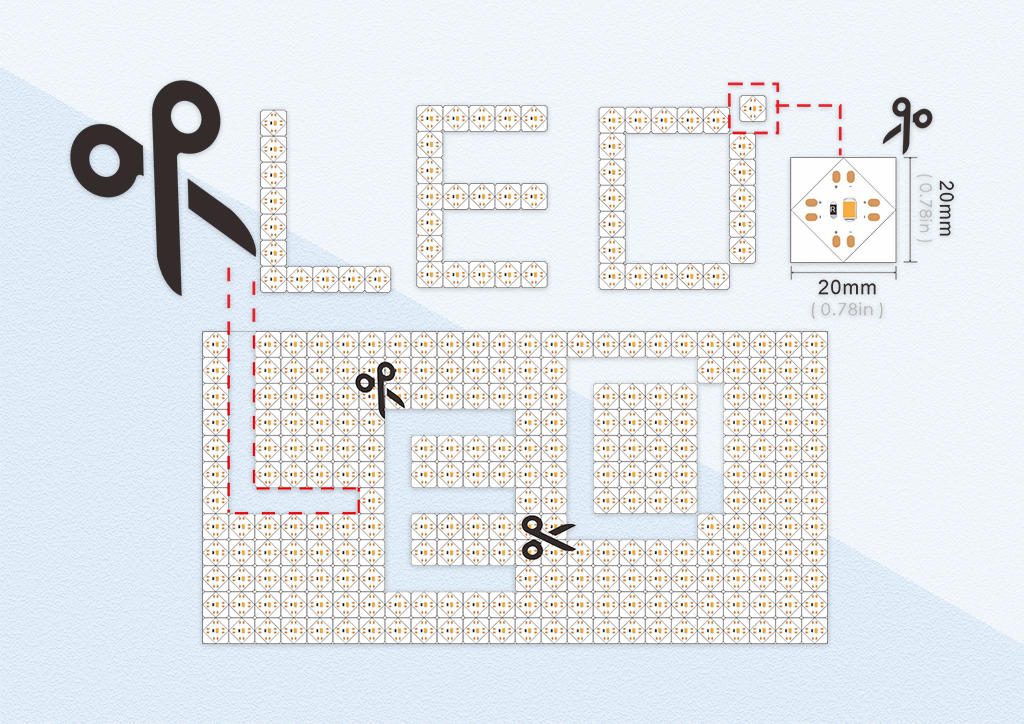

| Cutting Size: | 20 x 20 mm (0.78*0.78 in) | ||
| Dimension: | L480*W240*H1.6mm (L18.9*W9.5*H0.06in) | ||
| Environment: | Suitable for dry or damp locations | ||
| Mounting: | 3M Adhesive Backing and Screws | ||
| Approvals: | UL, CE, ROHS, REACH | ||
| Warranty: | 5 years, limited | ||
· Backlight sheet flexible and bendable
· High efficiency up to 95Lm/W
· Cuttable every led to create any sculpt
· Free-solder power feeding
· Waterproof type available IP54 for damp application

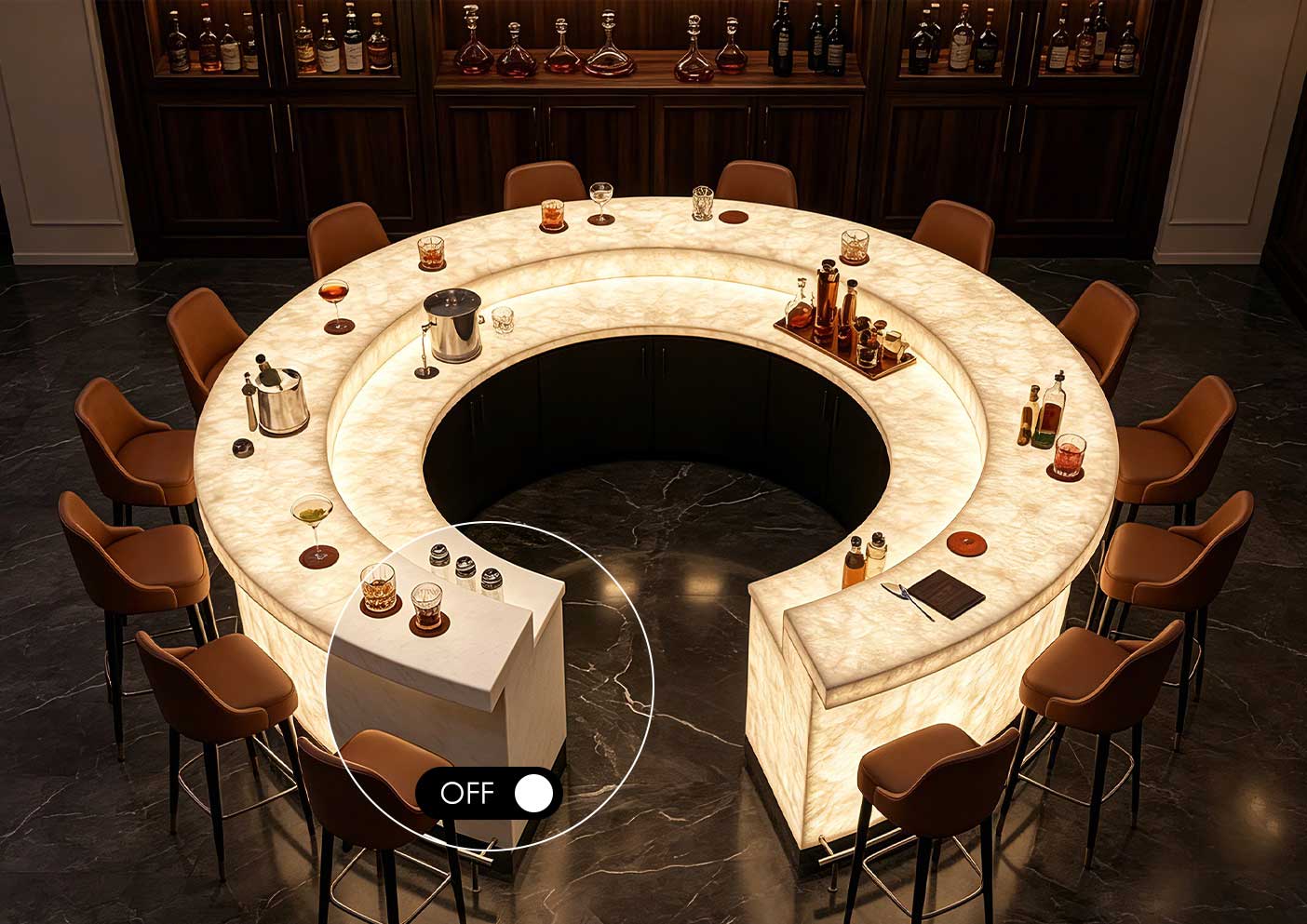

· Backlit wall feature panels
· Ceiling luminous installations
· Retail display back-lighting
