It’s best used in large open spaces in retail ,residential and commercial applications
24V DC · 9.6 W/m · 155 lm/W · 80 LEDs/m · 8 mm PCB Width · 100 mm Cut Interval
| Series code: | VFL-HE2835-940K-80-8-24V | ||
| Input Voltage: | 24V DC | ||
| Powe/m: | 9.6 W (2.93W/ft) | ||
| Lumens : | 2700K | 3000K | 4000K |
| 1,342 lm
(307 lm/ft) |
1,413 lm
(431 lm/ft) |
1,488 lm
(453 lm/ft) |
|
| Efficacy: | 155 Im/W @4000K, CRI90+ | ||
| CRI: | >90 (custom on request) | ||
| CCT: | 2700K / 3000K / 3500K / 4000K (custom on request) | ||
| Beam angle: | 120° | ||
| Color consistency: | SDCM < 3 | ||
| LED type: | SMD 2835 | ||
| Qty of LED: | 80 LEDs/m (24Led/ft) | ||
| Cutting Increment: | 24V @ 100mm (3.93 in) | ||
| Dimensions: | L5000*W8*H1.6mm (L196*W0.31*H0.06 in) | ||
| IC code: | N/A | ||
| Drivers/Dimming: | 0-10V; DALI, PWM, On/Off | ||
| IP/IK protection: | IP20, IP54, IP65, IP67, IP68 optional | ||
| Mounting: | 3M Adhesive Backing | ||
| Oper. Temp.: | -20~ + 50 ℃ ( -4 ~ 122 °F ) | ||
| Approvals: | UL, CE, ROHS, REACH | ||
| Warranty: | 5 years, limited | ||
· High efficacy series 2835, energy saving
· 155Lm/W@ CRI90
· Color temperatures from 1800K to 8000K
· Easy installation 3M adhesive backing
· Protection type available for IP20、IP54、IP65、IP67、IP68

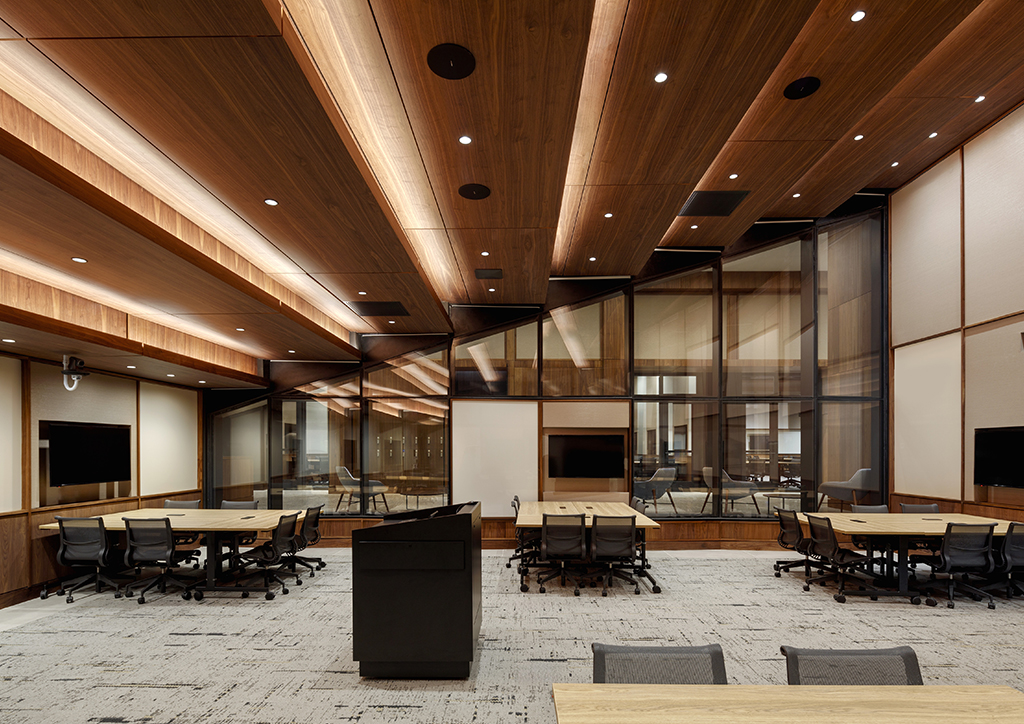

· Energy-conscious retail store lighting
· Residential living areas with high efficiency requirements
· Long-operation hospitality applications
