It’s best used in large open spaces in retail ,residential and commercial applications
12V DC · 12 W/m · 136 lm/W · 120 LEDs/m · 6 / 8 mm PCB Width · 33.3 mm Cut Interval
| Series code: | VFL-HE2835-940K-120-8-12V12 | ||
| Input Voltage: | 12V DC | ||
| Powe/m: | 12 W (3.65W/ft) | ||
| Lumens : | 2700K | 3000K | 4000K |
| 1,472 lm
(449 lm/ft) |
1,550 lm
(472 lm/ft) |
1,632 lm
(497 lm/ft) |
|
| Efficacy: | 136 Im/W @4000K, CRI90+ | ||
| CRI: | >90 (custom on request) | ||
| CCT: | 2700K / 3000K / 3500K / 4000K (custom on request) | ||
| Beam angle: | 120° | ||
| Color consistency: | SDCM < 3 | ||
| LED type: | SMD 2835 | ||
| Qty of LED: | 120 LEDs/m (36Led/ft) | ||
| Cutting Increment: | 24V @ 33.3mm (1.31 in) | ||
| Dimensions: | L5000*W8*H1.6mm (L196*W0.31*H0.06 in) | ||
| IC code: | N/A | ||
| Drivers/Dimming: | 0-10V; DALI, PWM, On/Off | ||
| IP/IK protection: | IP20, IP54, IP65, IP67, IP68 optional | ||
| Mounting: | 3M Adhesive Backing | ||
| Oper. Temp.: | -20~ + 50 ℃ ( -4 ~ 122 °F ) | ||
| Approvals: | UL, CE, ROHS, REACH | ||
| Warranty: | 5 years, limited | ||
· High efficacy series 2835, energy saving
· 136Lm/W@ CRI90
· Color temperatures from 1800K to 8000K
· Easy installation 3M adhesive backing
· Protection type available for IP20、IP54、IP65、IP67、IP68

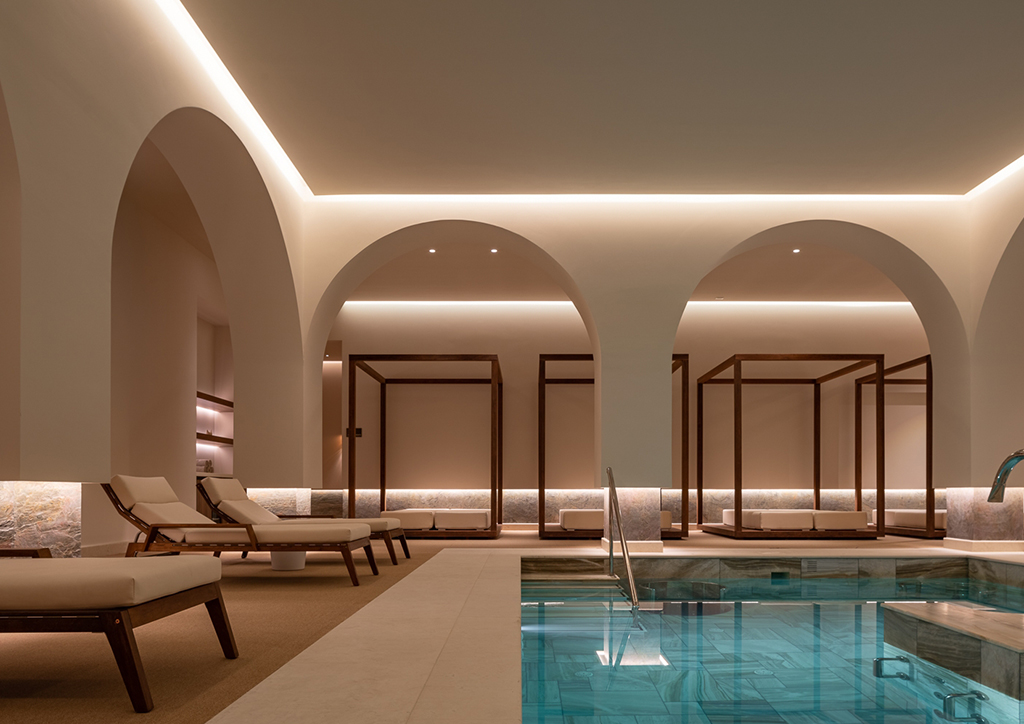

· Energy-conscious retail store lighting
· Residential living areas with high efficiency requirements
· Long-operation hospitality applications
