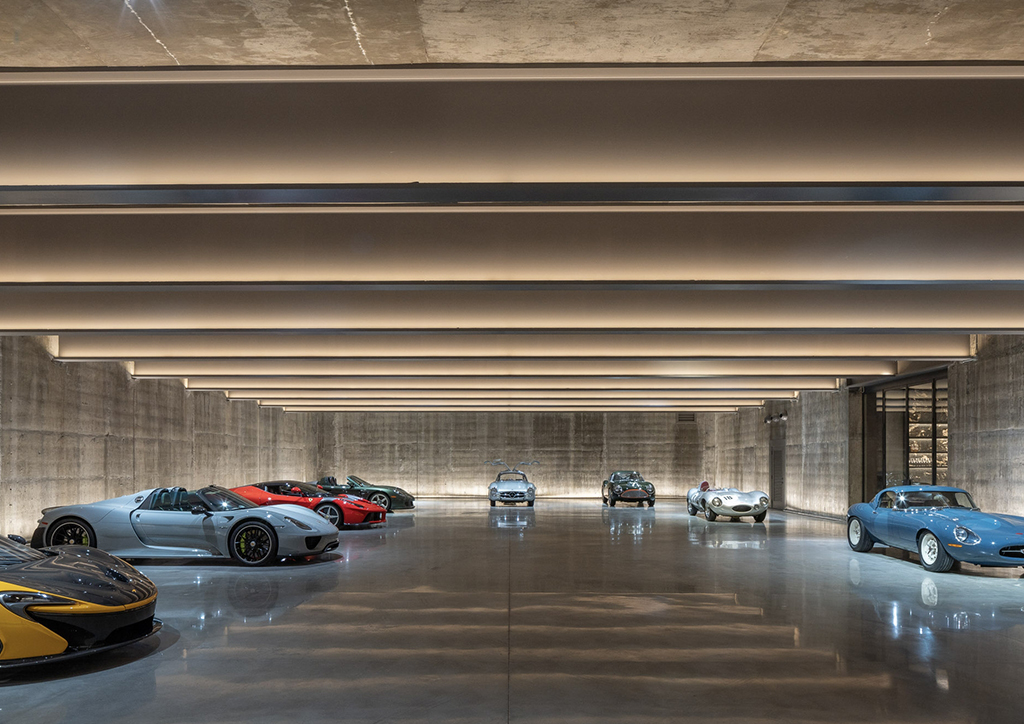

Perfect for accent and cove lighting applications
24V DC · 18 W/m · 130 lm/W · 180 LEDs/m · 8 mm PCB Width · 11.11 mm Cut Interval
| Series code: | FL-FCHE2835-TW-180-8-24V18 | ||
| Input Voltage: | 24V DC | ||
| Powe/m: | 18 W (5.48W/ft) | ||
| Lumens : | 2700K | 4000K | 6500K |
| 2,553 lm
(778 lm/ft) |
2,688 lm
(820 lm/ft) |
2,829 lm
(862 lm/ft) |
|
| Efficacy: | 130 Im/W @4000K, CRI90+ | ||
| CRI: | >90 (custom on request) | ||
| CCT: | 2700K ~ 65000K (custom on request) | ||
| Beam angle: | 120° | ||
| Color consistency: | SDCM < 3 | ||
| LED type: | SMD 2835 | ||
| Qty of LED: | 180 LEDs/m (54Led/ft) | ||
| Cutting Increment: | 11.11mm (0.24 in) | ||
| Dimensions: | L5000*W8*H1.6mm (L196*W0.31*H0.06 in) | ||
| IC code: | N/A | ||
| Drivers/Dimming: | 0-10V; DALI, PWM, On/Off | ||
| IP/IK protection: | IP20, IP54, IP65, IP67, IP68 optional | ||
| Mounting: | 3M Adhesive Backing | ||
| Oper. Temp.: | -20~ + 50 ℃ ( -4 ~ 122 °F ) | ||
| Approvals: | UL, CE, ROHS, REACH | ||
| Warranty: | 5 years, limited | ||
· Two led ,one cut and PCB width 8 mm design
· Easy installation 3M adhesive backing
· Protection type available for IP20、IP54、IP65、IP67、IP68
· Custom-length signage
· Precise architectural dimension matching
· Exhibition booth quick-install layouts
· On-site adjustable project installations
