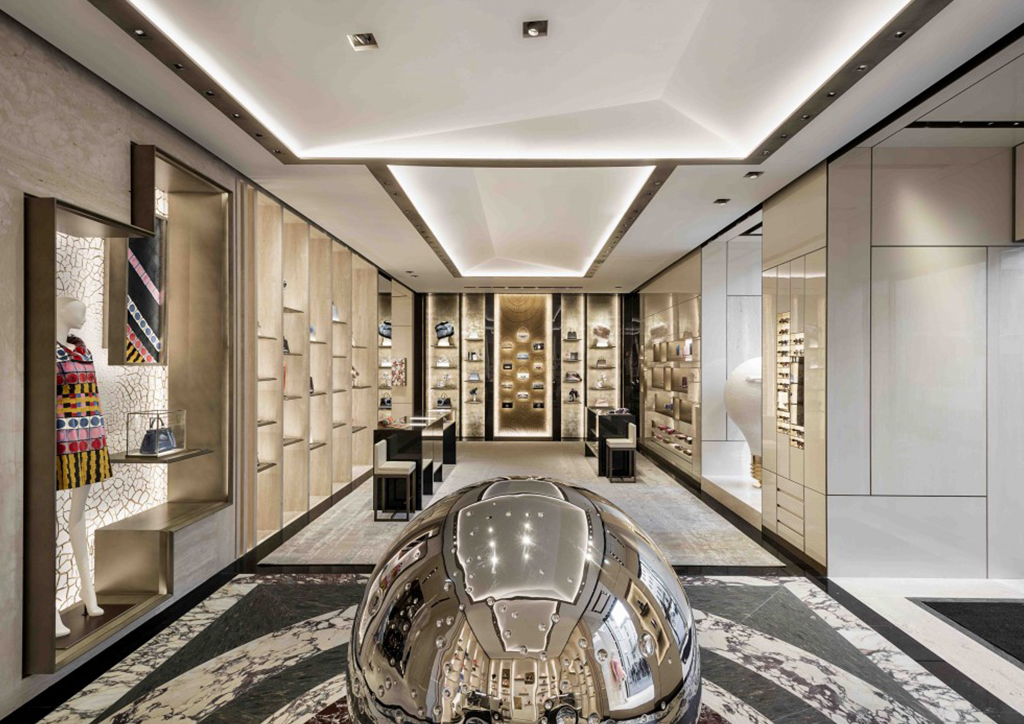

Perfect for accent and cove lighting applications
12V DC · 7.2 W/m · 150 lm/W · 160 LEDs/m · 5 mm PCB Width · 6.25 mm Cut Interval
| Series code: | VFL-FCHE2835-930K-160-5-12V07 | ||
| Input Voltage: | 12V DC | ||
| Powe/m: | 7.2 W (1.83W/ft) | ||
| Lumens : | 2700K | 3000K | 4000K |
| 1,026 lm
(313 lm/ft) |
1,080lm
(329 lm/ft) |
1,137 lm
(347 lm/ft) |
|
| Efficacy: | 150 Im/W @3000K, CRI90+ | ||
| CRI: | >90 (custom on request) | ||
| CCT: | 2700K / 3000K / 3500K / 4000K (custom on request) | ||
| Beam angle: | 120° | ||
| Color consistency: | SDCM < 3 | ||
| LED type: | SMD 2835 | ||
| Qty of LED: | 160LEDs/m (48Led/ft) | ||
| Cutting Increment: | 24V @ 6.25mm (0.24 in) | ||
| Dimensions: | L5000*W5*H1.6mm (L196*W0.19*H0.06 in) | ||
| IC code: | N/A | ||
| Drivers/Dimming: | 0-10V; DALI, PWM, On/Off | ||
| IP/IK protection: | IP20, IP54, IP65 optional | ||
| Mounting: | 3M Adhesive Backing | ||
| Oper. Temp.: | -20~ + 50 ℃ ( -4 ~ 122 °F ) | ||
| Approvals: | UL, CE, ROHS, REACH | ||
| Warranty: | 5 years, limited | ||
· One led ,one cut and narrow 5 mm design
· Easy installation 3M adhesive backing
· Protection type available for IP20、IP54、IP65
· Custom-length signage
· Precise architectural dimension matching
· Exhibition booth quick-install layouts
· On-site adjustable project installations
