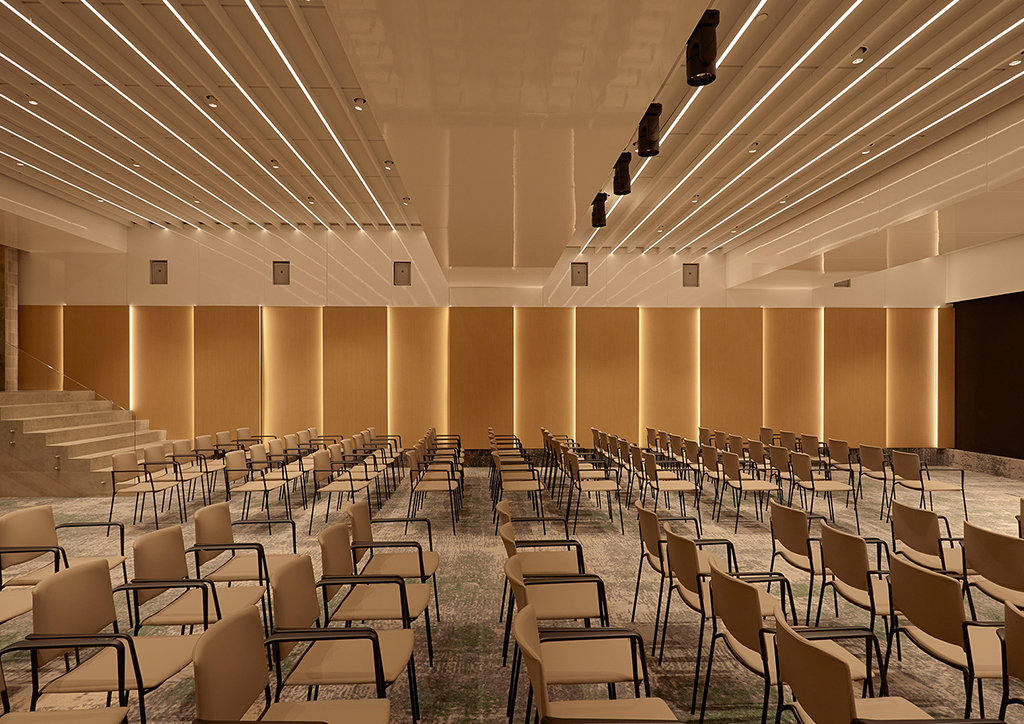

Perfect for accent and cove lighting applications
24V DC · 22 W/m · 140 lm/W · 240 LEDs/m · 10 mm PCB Width · 4.17 mm Cut Interval
| Series code: | VFL-FCHE2835-930K-240-10-24V22 | ||
| Input Voltage: | 24V DC | ||
| Powe/m: | 22 W (6.7W/ft) | ||
| Lumens : | 2700K | 3000K | 4000K |
| 2,926 lm
(892 lm/ft) |
3,080 lm
(939 lm/ft) |
3,242 lm
(988 lm/ft) |
|
| Efficacy: | 140 Im/W @3000K, CRI90+ | ||
| CRI: | >90 (custom on request) | ||
| CCT: | 2700K / 3000K / 3500K / 4000K (custom on request) | ||
| Beam angle: | 120° | ||
| Color consistency: | SDCM < 3 | ||
| LED type: | SMD 2835 | ||
| Qty of LED: | 240 LEDs/m (73Led/ft) | ||
| Cutting Increment: | 24V @ 4.17mm (0.16 in) | ||
| Dimensions: | L5000*W10*H1.6mm (L196*W0.39*H0.06 in) | ||
| IC code: | N/A | ||
| Drivers/Dimming: | 0-10V; DALI, PWM, On/Off | ||
| IP/IK protection: | IP20, IP54, IP65, IP67, IP68 optional | ||
| Mounting: | 3M Adhesive Backing | ||
| Oper. Temp.: | -20~ + 50 ℃ ( -4 ~ 122 °F ) | ||
| Approvals: | UL, CE, ROHS, REACH | ||
| Warranty: | 5 years, limited | ||
· One led ,one cut and PCB width 10 mm design
· Easy installation 3M adhesive backing
· Protection type available for IP20、IP54、IP65、IP67、IP68
· Custom-length signage
· Precise architectural dimension matching
· Exhibition booth quick-install layouts
· On-site adjustable project installations
