It’s available bend custom shape lighting application
24V DC · 7.2 W/m · 85 lm/W · 60 LEDs/m · 8 mm PCB Width · 50mm Cut Interval
| Series code: | VFL-ZO2835-940K-60-8-24V07 | ||
| Input Voltage: | 24V DC | ||
| Powe/m: | 7.2 W (2.2W/ft) | ||
| Lumens : | 2700K | 3000K | 4000K |
| 581 lm
(177 lm/ft) |
612 lm
(186 lm/ft) |
645 lm
(208 lm/ft) |
|
| Efficacy: | 85 Im/W @3000K, CRI90+ | ||
| CRI: | >90 (custom on request) | ||
| CCT: | 2700K / 3000K / 3500K / 4000K (custom on request) | ||
| Beam angle: | 120° | ||
| Color consistency: | SDCM < 3 | ||
| LED type: | SMD 2835 | ||
| Qty of LED: | 60 LEDs/m (18Led/ft) | ||
| Cutting Increment: | 24V @ 50mm (1.96 in) | ||
| Dimensions: | L5000*W8*H1.6mm (L196*W0.31*H0.06 in) | ||
| IC code: | N/A | ||
| Drivers/Dimming: | 0-10V; DALI, PWM, On/Off | ||
| IP/IK protection: | IP20, IP54, IP65 optional | ||
| Mounting: | 3M Adhesive Backing | ||
| Oper. Temp.: | -20~ + 50 ℃ ( -4 ~ 122 °F ) | ||
| Approvals: | UL, CE, ROHS, REACH | ||
| Warranty: | 5 years, limited | ||
Key Features
· Bendable in both the horizontal and vertical planes
· Color temperatures from 1800K to 8000K
· Easy installation 3M adhesive backing
· Protection type available for IP20、IP54、IP65
Typical Applications

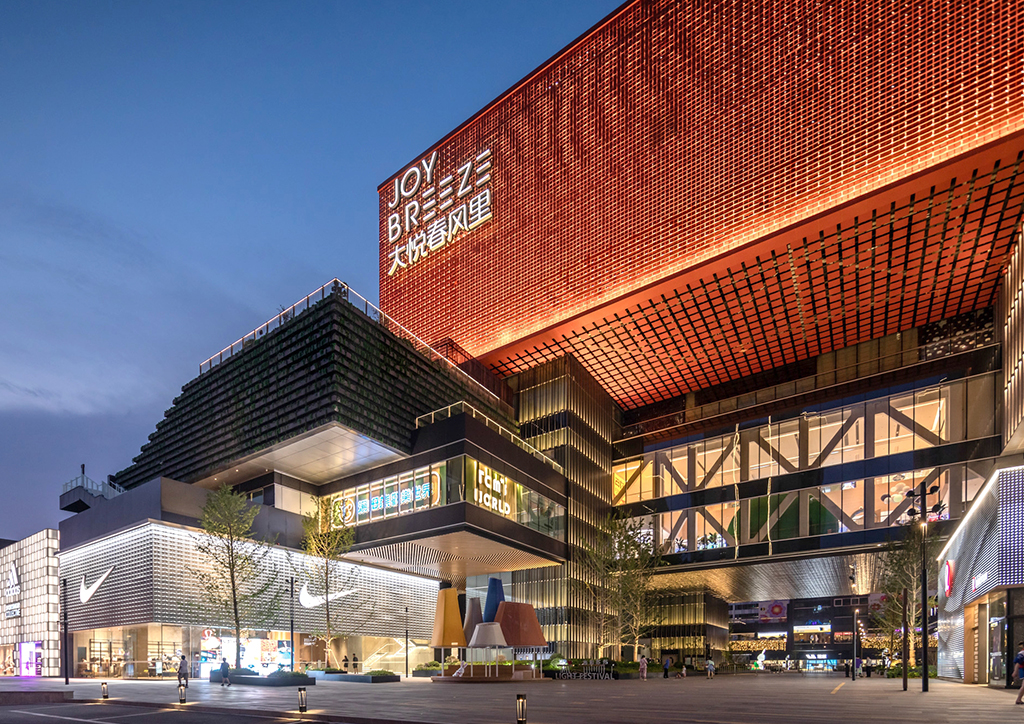

· Curved architectural feature lighting
· Custom-shaped signage and logos
· Circular display case illumination
· Artistic curved installations
