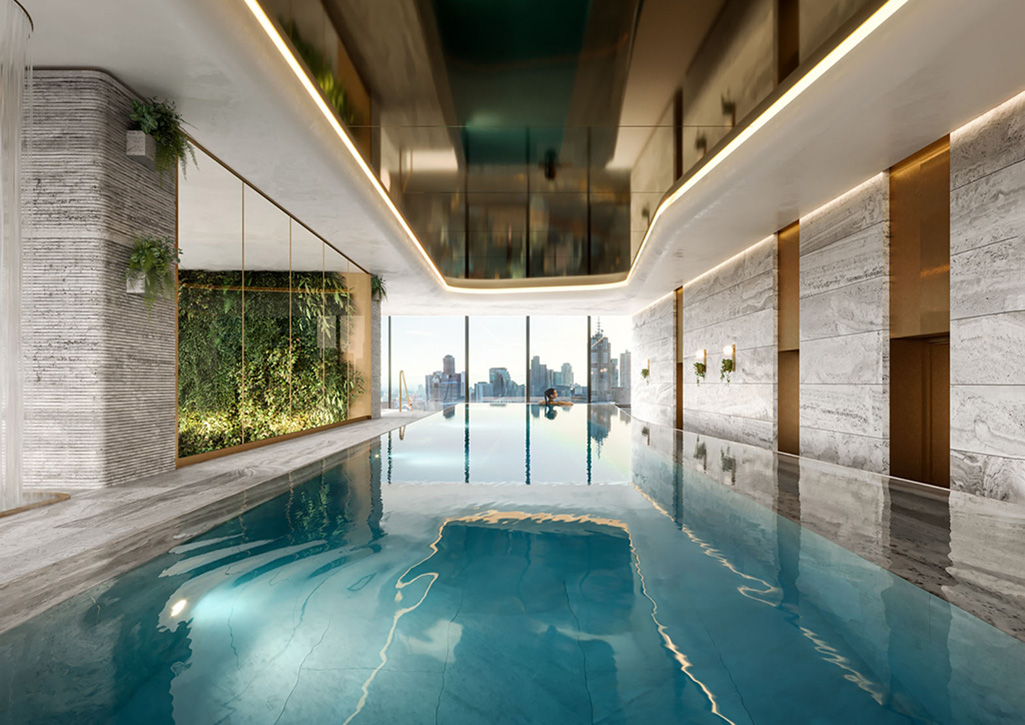

Perfect for accent and cove lighting applications
Options: 12 V / 24 V DC, 6 / 8 mm PCB width, 50 mm / 100 mm cut interval
| Series code: | VFL-BS2835-930K-60-8-24V | ||
| Input Voltage: | 12V / 24V DC | ||
| Powe/m: | 9.6 W (2.93W/ft) | ||
| Lumens : | 2700K | 3000K | 4000K |
| 729 lm
(222 lm/ft) |
768 lm
(234 lm/ft) |
808 lm
(292 lm/ft) |
|
| Efficacy: | 80 Im/W @3000K, CRI90+ | ||
| CRI: | >90 (custom on request) | ||
| CCT: | 2700K / 3000K / 3500K / 4000K (custom on request) | ||
| Beam angle: | 120° | ||
| Color consistency: | SDCM < 3 | ||
| LED type: | SMD 2835 | ||
| Qty of LED: | 60LEDs/m (18Led/ft) | ||
| Cutting Increment: | 12V@50mm (1.97 in)，24V@100mm (3.93 in) | ||
| Dimensions: | L5000*W8*H1.6mm (L196*W0.31*H0.06 in) | ||
| IC code: | N/A | ||
| Drivers/Dimming: | 0-10V; DALI, PWM, On/Off | ||
| IP/IK protection: | IP20, IP54, IP65, IP67, IP68 optional | ||
| Mounting: | 3M Adhesive Backing | ||
| Oper. Temp.: | -20~ + 50 ℃ ( -4 ~ 122 °F ) | ||
| Approvals: | UL, CE, ROHS, REACH | ||
| Warranty: | 5 years, limited | ||
Key Features
· Basic series 2835, cost effective
· Color temperatures from 1800K to 8000K
· Easy installation 3M adhesive backing
· Protection type available for IP20、IP54、IP65、IP67、IP68
· Kitchen under-cabinet lighting
· Retail shelf edge accent lighting
· Display cabinet interior lighting
· Mirror edge back-lighting
